SPA BATH SWITCH- pneumatic air button kit universal applications. Can be used in engineering applications, food manufacturing plants, in wet areas, automotive application etc.

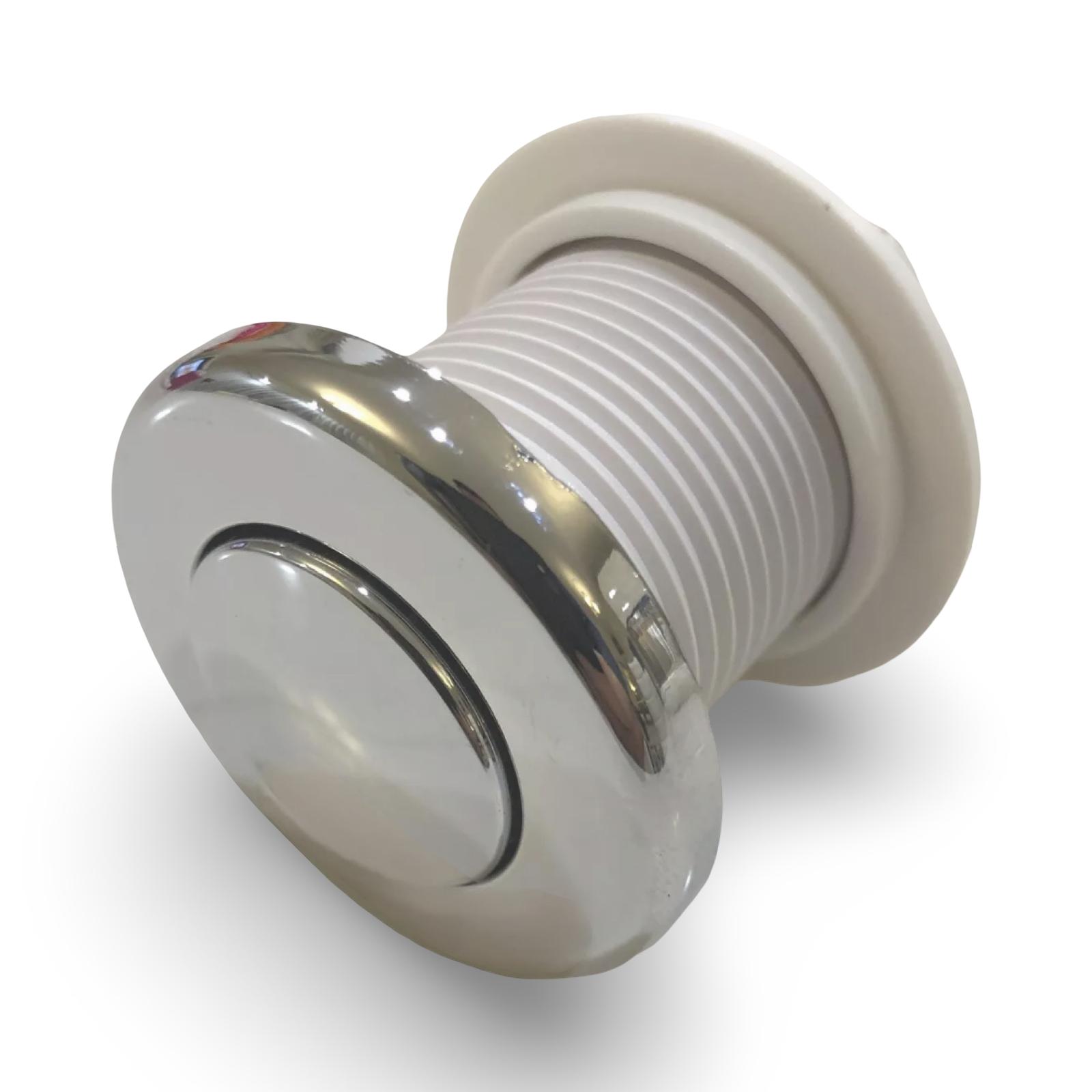

Dimensions:Length 65MMButton Width 45mmBore/hole size to suit 32mm

Hose:1.5m length O.D 6mm I.D 3mm

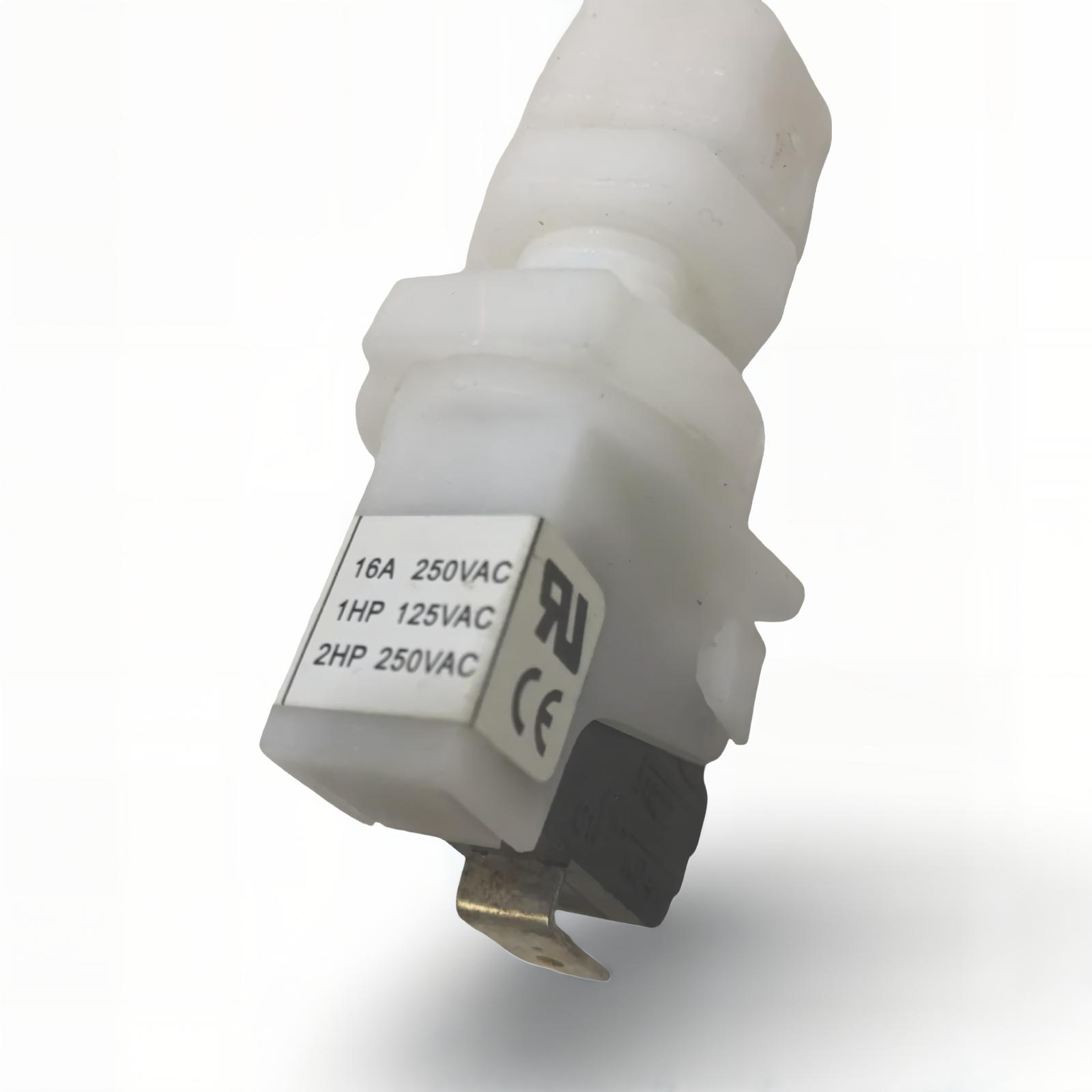

Switch:240v, 16amptwo pinmomentary air button switch

Operation:Once installed and the air button is pressed, it creates pressurerised air through the tube and the air forces the micro switch to be pressed on the switch side and hence making a closed circuit or an open circut. It can be either normally closed-NC or normally open-NO, its switch, so each time the button is pressed and released it will be either on or off.

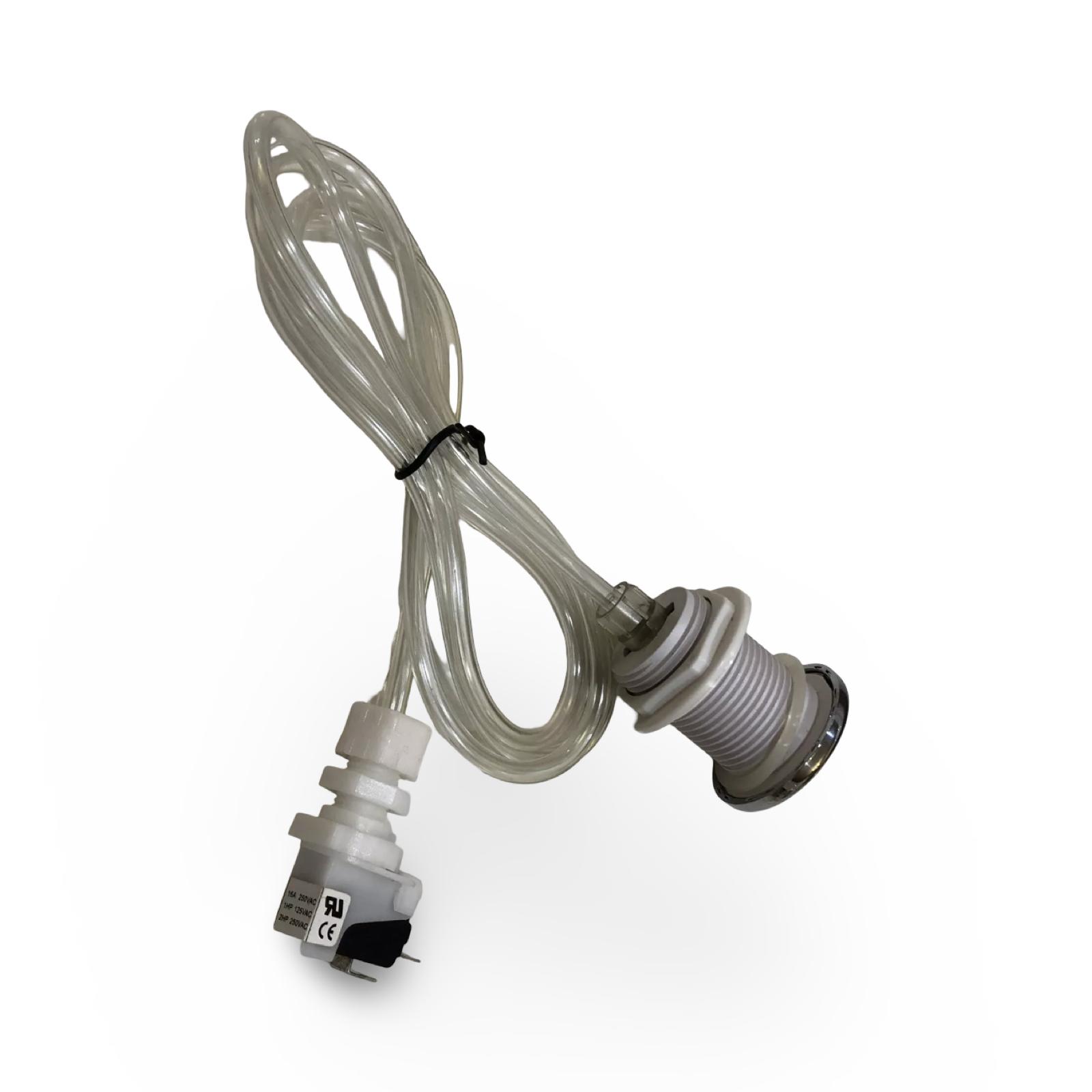

KIT INCLUDES :

1x Air button

1x Hose 1m

1x contact switch.
